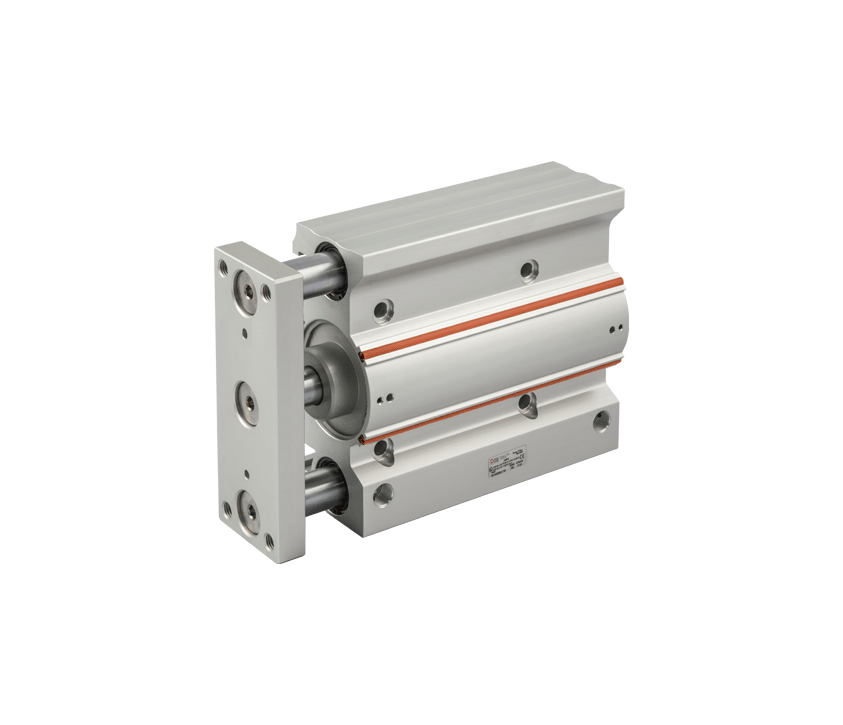

The Multifix Series expands with the introduction of the new ø 80 size for high loads.
The new size maintains all the features of the Series and is therefore designed to allow the fixing on multiple sides using different methods, compressed air supply on both sides and double sensor slots, on both the upper and lower side.

It is possible to choose the version with ground chromed carbon steel piston rods guided by sintered bronze bushings or the version with hardened, chromed and ground steel piston rods guided by ball recirculating bushings.
In both cases, both a silenced version, with elastic end-stroke elements, and a version having pneumatic cushioning with adjustable pins to control the braking are available.

All versions are available with a maximum stroke of 400 mm.

Intermediate sizes will be developed in the future.

 See ATEX declaration of conformity

 See ATEX operating instructions
